BX Motorcycle CarPlay with Dashcam & Smart BSD
RALLY READY
FOR THE LONG RIDE
August was made for long rides. Find your line, capture every mile, and stay ready for whatever the road brings.
Professional Safety Ecosystem
BX: THE WORLD'S FIRST RADAR-ARMORED DASH CAM
SMART BLIND SPOT DETECTION (BSD)
Powered by 24GHz mmWave radar technology. BX detects vehicles approaching from the left, right, or rear in real-time. Stay alert with multi-layer warnings: audio beeps, on-screen red visual frames, and automatic camera switching.
- BSD Blind Spot Detection
- On-Screen Warning Overlay
- External Alert Hardware Included
CRASH-PROOF EMERGENCY RECORDING
The integrated G-sensor instantly identifies collisions or sudden impacts, locking the current recording into a secure folder. Your critical evidence remains untouched and safe from loop-deletion cycles.
DUAL 1080P + AUDIO HARMONY
Synchronized front and rear 1080P HD recording with ultra-wide 140° glass lenses. Captures high-fidelity ambient sound to provide a complete audiovisual record of road hazards, scenic routes, or legal disputes.
EXTERNAL 5HZ HIGH-ACCURACY GPS
Precision monitoring via a dedicated external module. Unlike built-in GPS that suffers from signal interference, the BX external unit refreshes at 5Hz (5 times per second) for lag-free, dead-accurate speed and route tracking.
1-SECOND QUICK-RELEASE SYSTEM
Safety shouldn't be a chore. Snap the main unit off in seconds when parking. The heavy-duty aluminum bracket features hidden anti-theft hex screws, ensuring the base remains permanently part of your bike.
5.5" ULTRA-BRIGHT AUTO-DISPLAY
The 1400-nit IPS panel fights glare with raw power. Integrated light sensors monitor the environment, automatically dimming at night and boosting to peak brightness under midday desert sun.
ACTIVE TIRE PRESSURE (TPMS)
Protect your tires and fuel economy. BX displays real-time pressure and temperature for both wheels. Customizable high/low pressure thresholds ensure you're alerted long before a flat becomes a crisis.

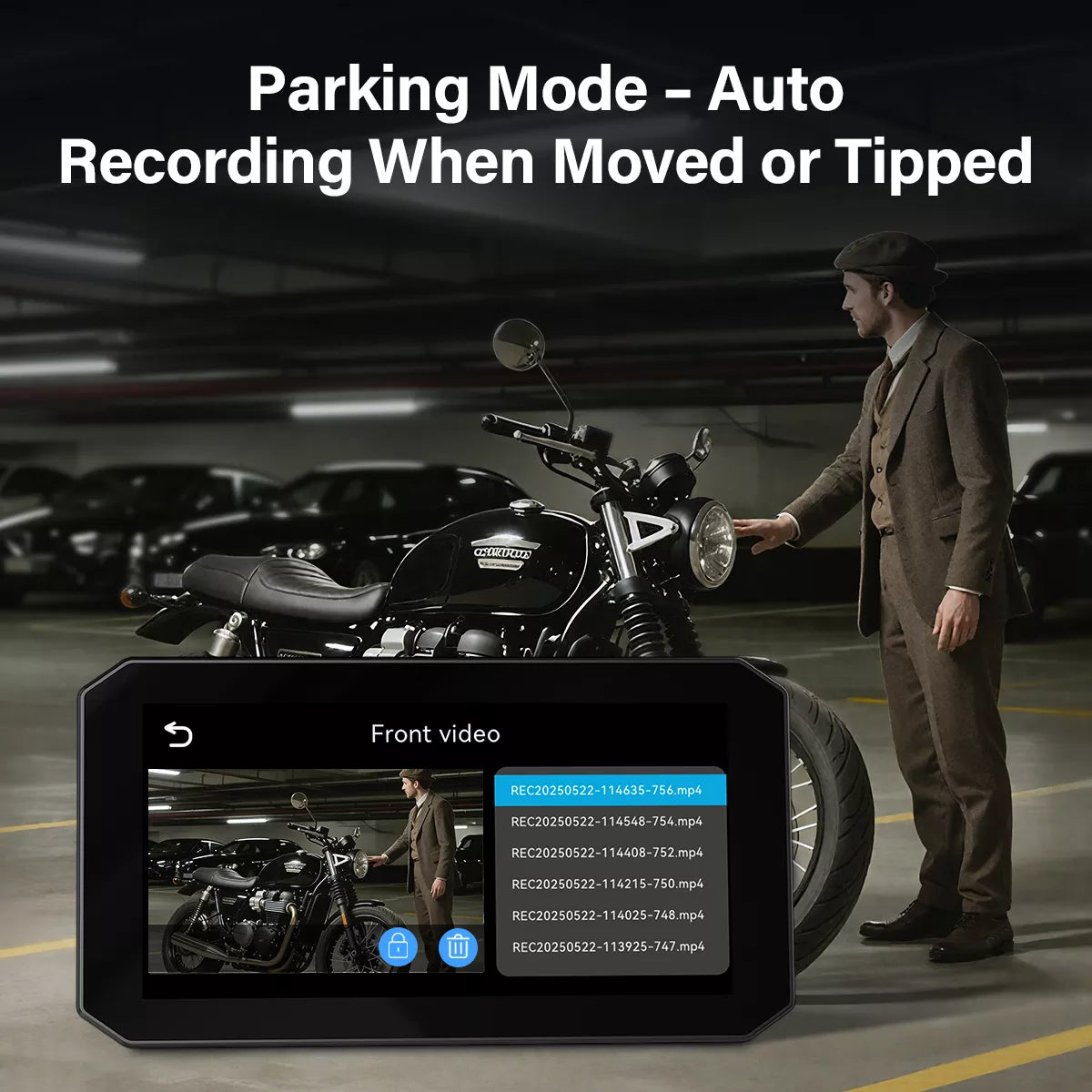

PARKING GUARD + VOLTAGE WATCH
Your bike's silent sentry. Detected bumps trigger automatic recording while parked. Integrated voltage monitoring ensures the system shuts off at 11.8V, preserving your battery for the next morning's start.
HANDS-ON-GRIP REMOTE CONTROL
Answer calls, fire the shutter, or switch view modes without letting go of the handlebar. Tactical buttons provide feedback through riding gloves, ensuring safe control in all environments.
TRIPLE-ECOSYSTEM CONNECTIVITY
Full support for Apple CarPlay, Android Auto, and Huawei HiCar. Seamlessly bridge your digital life with your machine. Maps, music, and messages—optimized for the road.
IP67 WEATHERPROOF PROTECTION
BX is built for exposed motorcycle installation with IP67 dust and water resistance. It is designed for rain, spray, and road grime, while high-pressure washing or prolonged immersion should still be avoided.
APP-DRIVEN OTA INTELLIGENCE
Preview, download, and share ride footage through the mobile app, with firmware updates supported through OTA workflows.
EXTREME CLIMATE ENDURANCE
From desert heat to alpine frost. BX is specified for -20°C to 65°C (-4°F to 149°F), helping the system stay reliable across demanding motorcycle environments.
Main Unit & Display
| OS | Embedded Linux System |
|---|---|
| Screen | 5.5" High-Bright IPS Touch |
| Resolution | 1440 × 720p |
| Brightness | 1400 nits (Auto-Adaptive) |
| Dimensions | 151 × 82 × 32 mm |
| Weight | 0.34 kg |
Recording & Security
| BSD | Blind Spot Detection supported |
|---|---|
| Camera Resolution | Dual AHD 1080P front and rear @ 30fps |
| Camera Angle | 140° Wide-Angle FOV |
| Video Encoding | H.265 / TS-Stream / MP4 |
| Storage | Up to 128GB MicroSD |
| GPS | External 5Hz module |
Connectivity & Survival
| Phone Interface | Wireless CarPlay / Android Auto / HiCar |
|---|---|
| Wireless | 2.4GHz / 5.0GHz Wi-Fi + Bluetooth 4.2 |
| Waterproof | IP67 |
| Operating Temp | -20°C to 65°C (-4°F to 149°F) |
| TPMS Support | Pressure & temperature monitoring included |
| Power Supply | 12–24V to 5V ACC power cable |
Complete Your Setup
Pair your BX with these rider-tested accessories:

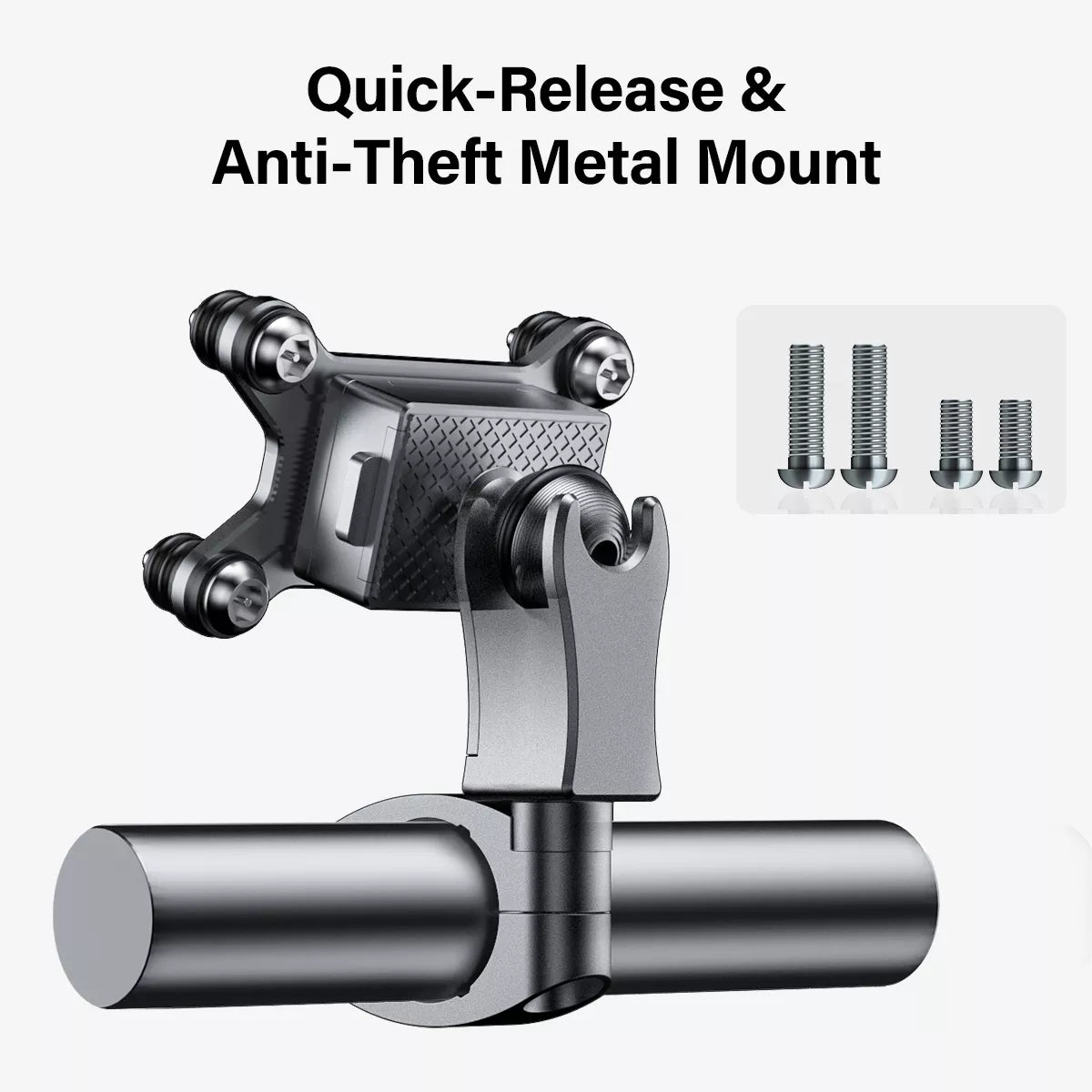

- Metal CarPlay Mount — a rugged, vibration-resistant hold
- Quick-Release Mount Base — swap the display on and off in seconds
- Screen Protector — shield the display from scratches and glare
BX Buyer FAQ
Direct answers for riders comparing a BSD motorcycle dash cam, CarPlay screen, TPMS display, and dual-camera recorder.
Does the BX support wireless Apple CarPlay and Android Auto?
Yes. BX supports wireless Apple CarPlay, Android Auto, and HiCar for phone-based maps, calls, music, and riding apps.
Can the BX record front and rear video at the same time?
Yes. BX records with front and rear AHD 1080P cameras at 30fps using H.265 video.
Is the BX waterproof for rain riding?
Yes. BX is specified as IP67 for exposed motorcycle use in rain and dust. Avoid high-pressure washing on connectors.
Does the BX include TPMS tire pressure monitoring?
Yes. BX includes TPMS support for tire pressure and temperature monitoring, with tire pressure sensors listed in the package.
How is the BX powered on a motorcycle?
Use the included ACC power cable. The raw spec lists 12–24V to 5V power conversion for motorcycle installation.
What microSD card capacity does the BX support?
BX supports up to 128GB. Use a high-endurance microSD card because front and rear loop recording writes continuously.
Will the BX fit my motorcycle handlebar?
It fits many motorcycle handlebars. The listed mounting range is 14–35 mm, with a metal quick-release bracket and 61 × 36 mm hole pattern.
Does the BX have blind spot detection?
Yes. BX supports BSD blind spot detection. The current raw spec confirms BSD support, but no verified 20m detection distance is listed.
SERVICE & SUPPORT TIER
Firmware & System Software
Manuals can be accessed here: BX Help Center.
Order Fulfillment & Tracking
1-Year Limited Warranty
Satisfaction & Returns
Motorcycle CarPlay system with dashcam, blind spot detection, and TPMS. Customers praised the "brilliant rear radar," clear cameras, and easy setup. Common concerns include camera resolution, cable lengths being too short or long, tire pressure accuracy issues, and compass functionality. Installation can be challenging but "works great."

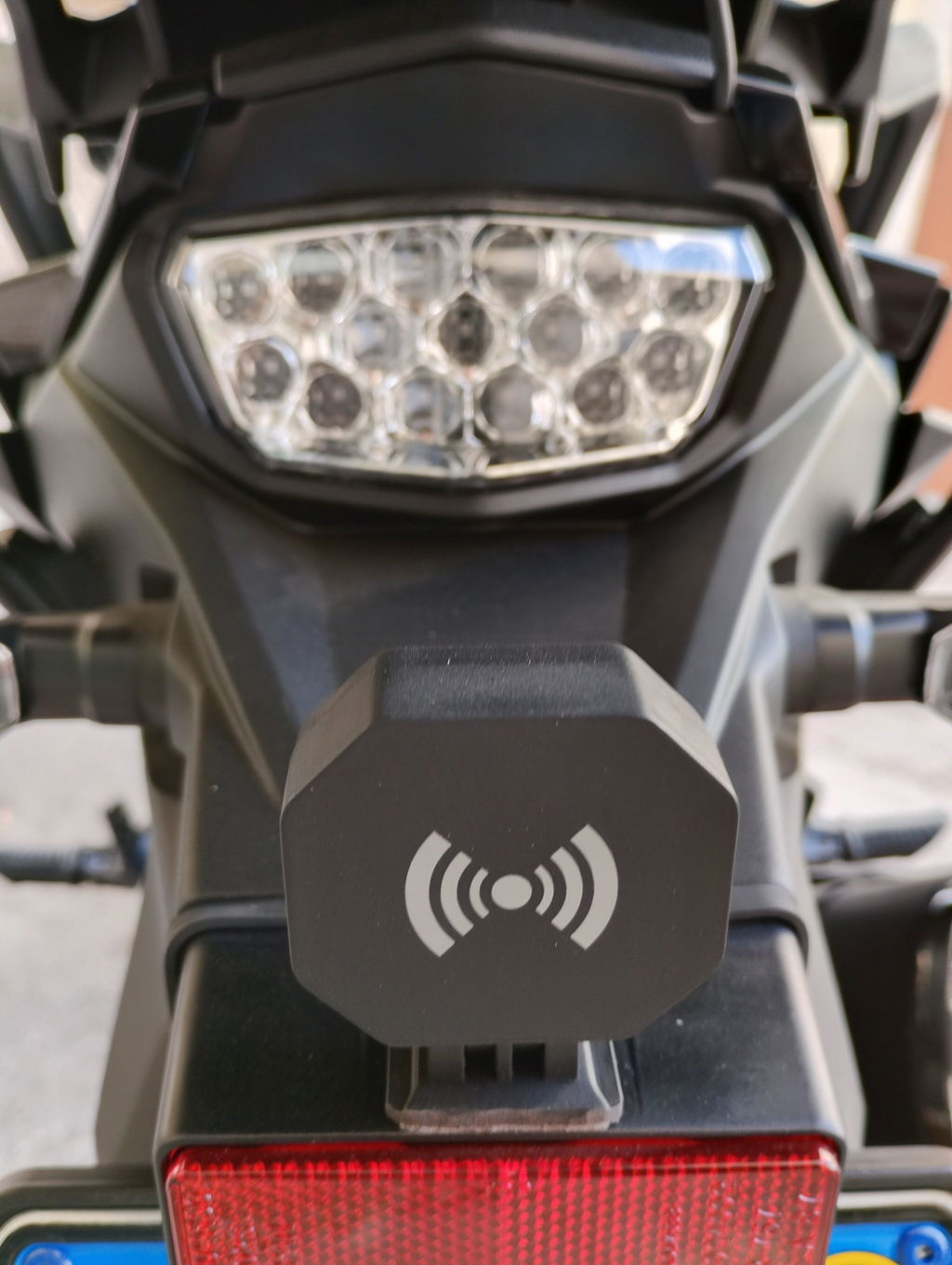

- The rear radar is brilliant with the rear camera view
- Amazing piece of essential addon - rear front camera high quality radar detect and reliable
- This is an awesome product. The Blind Spot Warning works and makes it hard to imagine not having

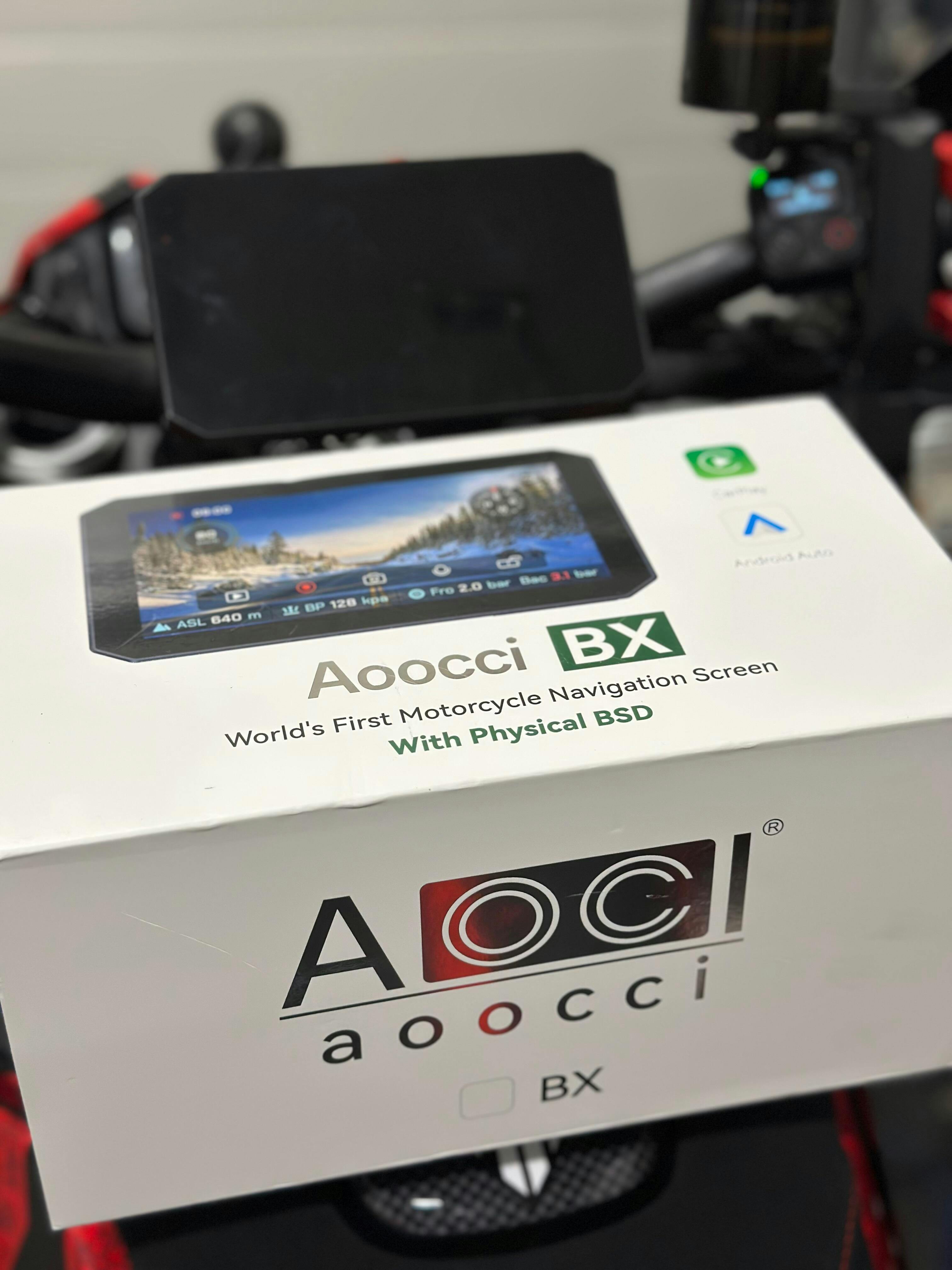

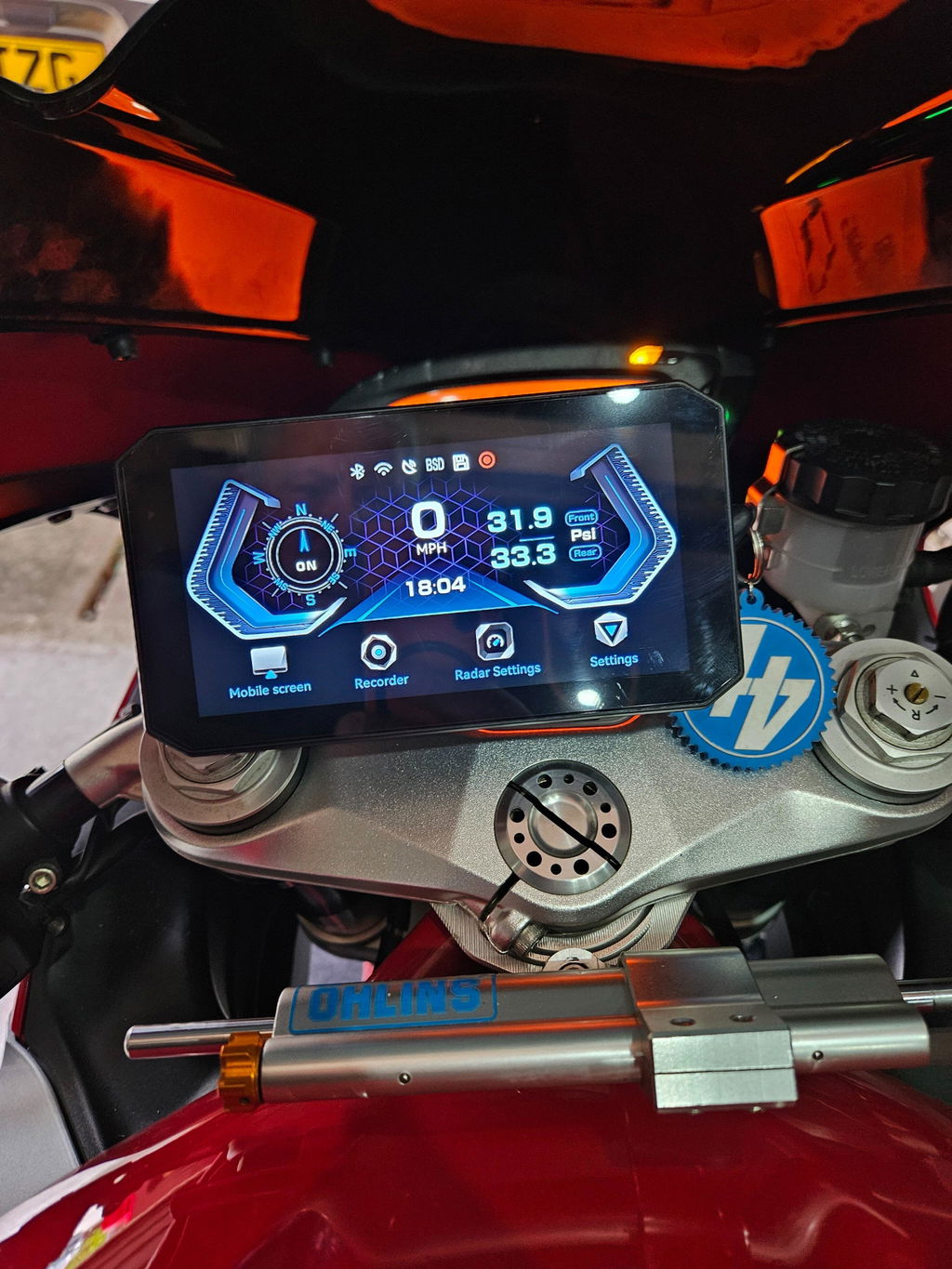

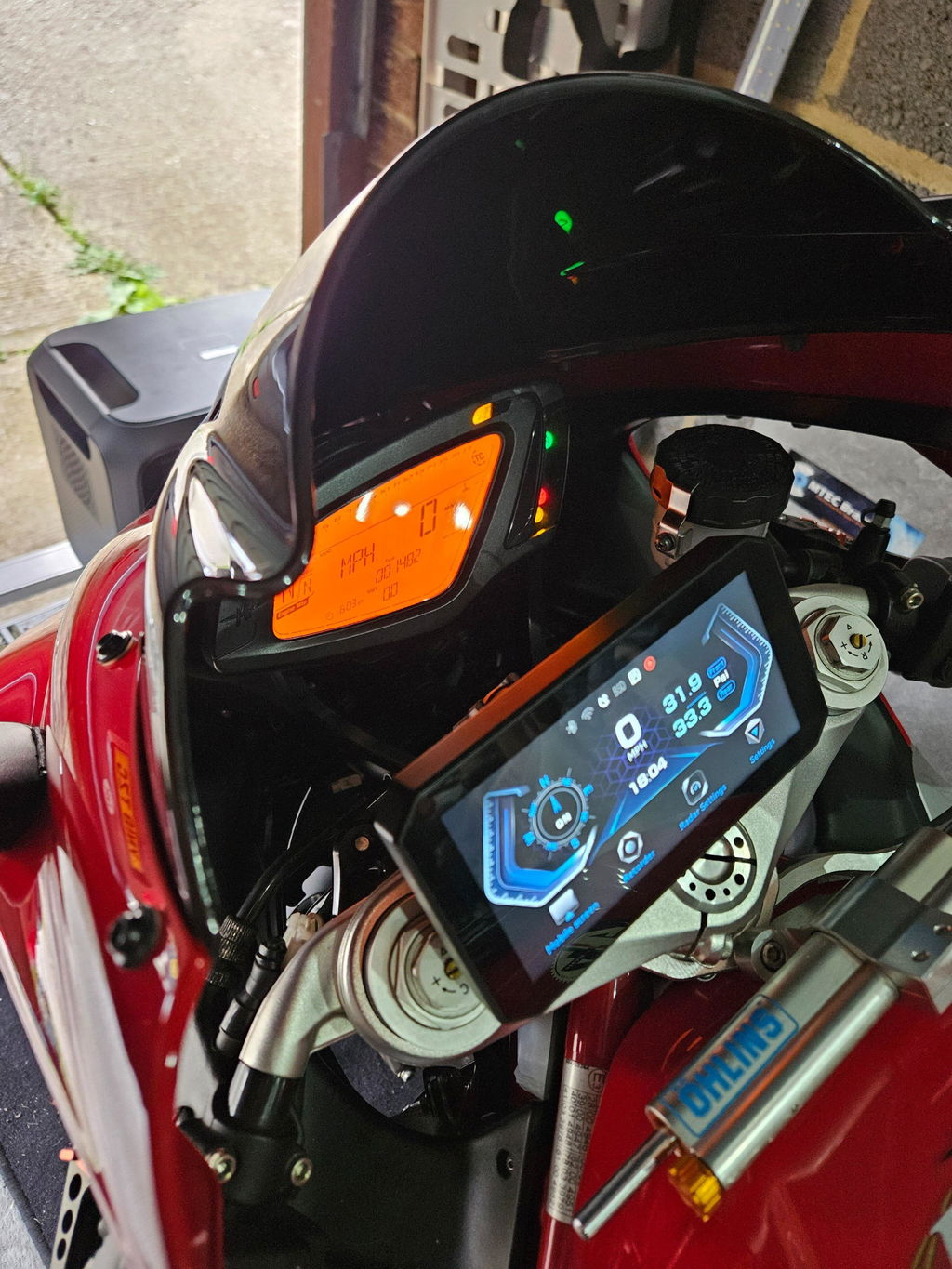

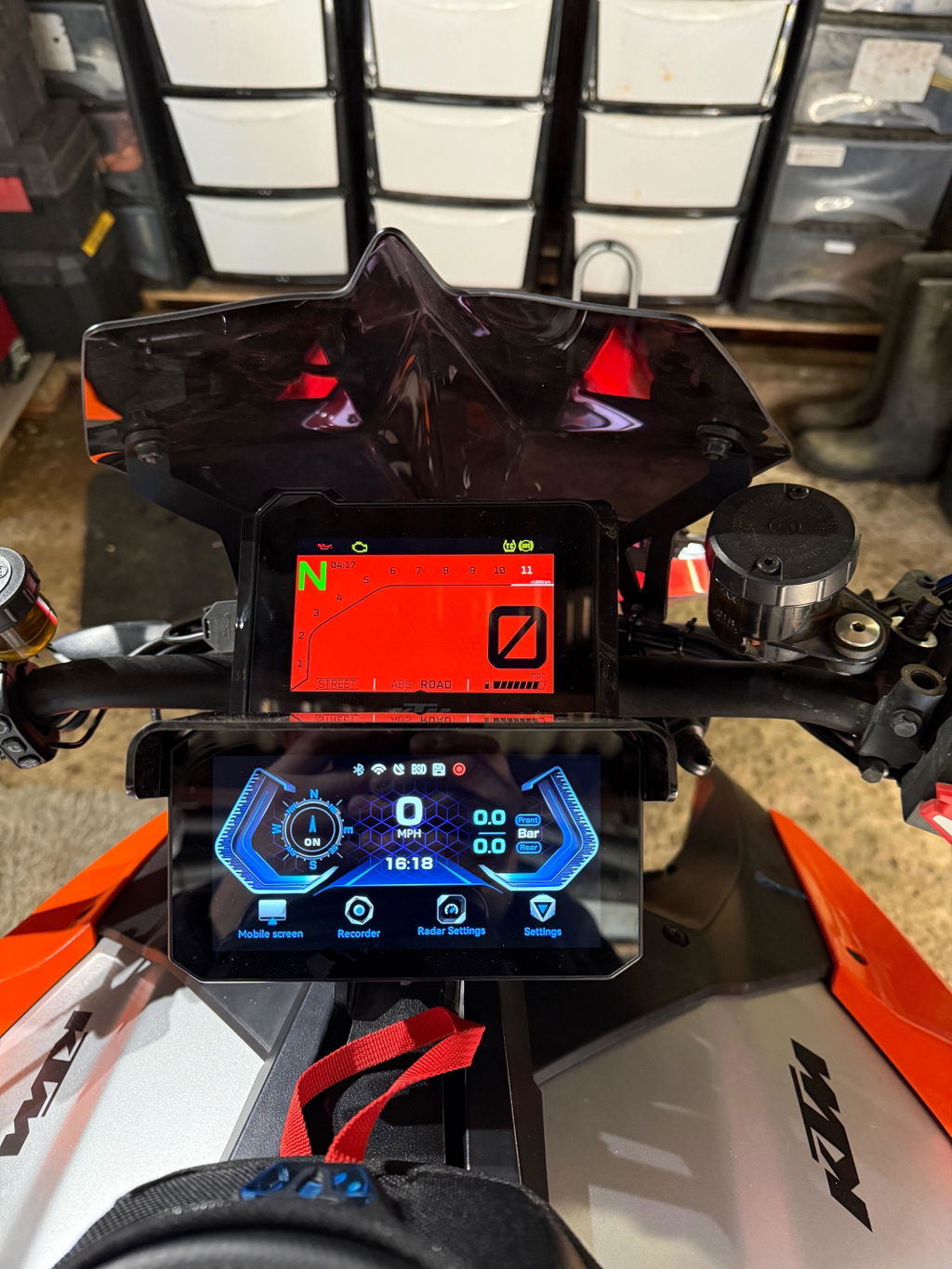

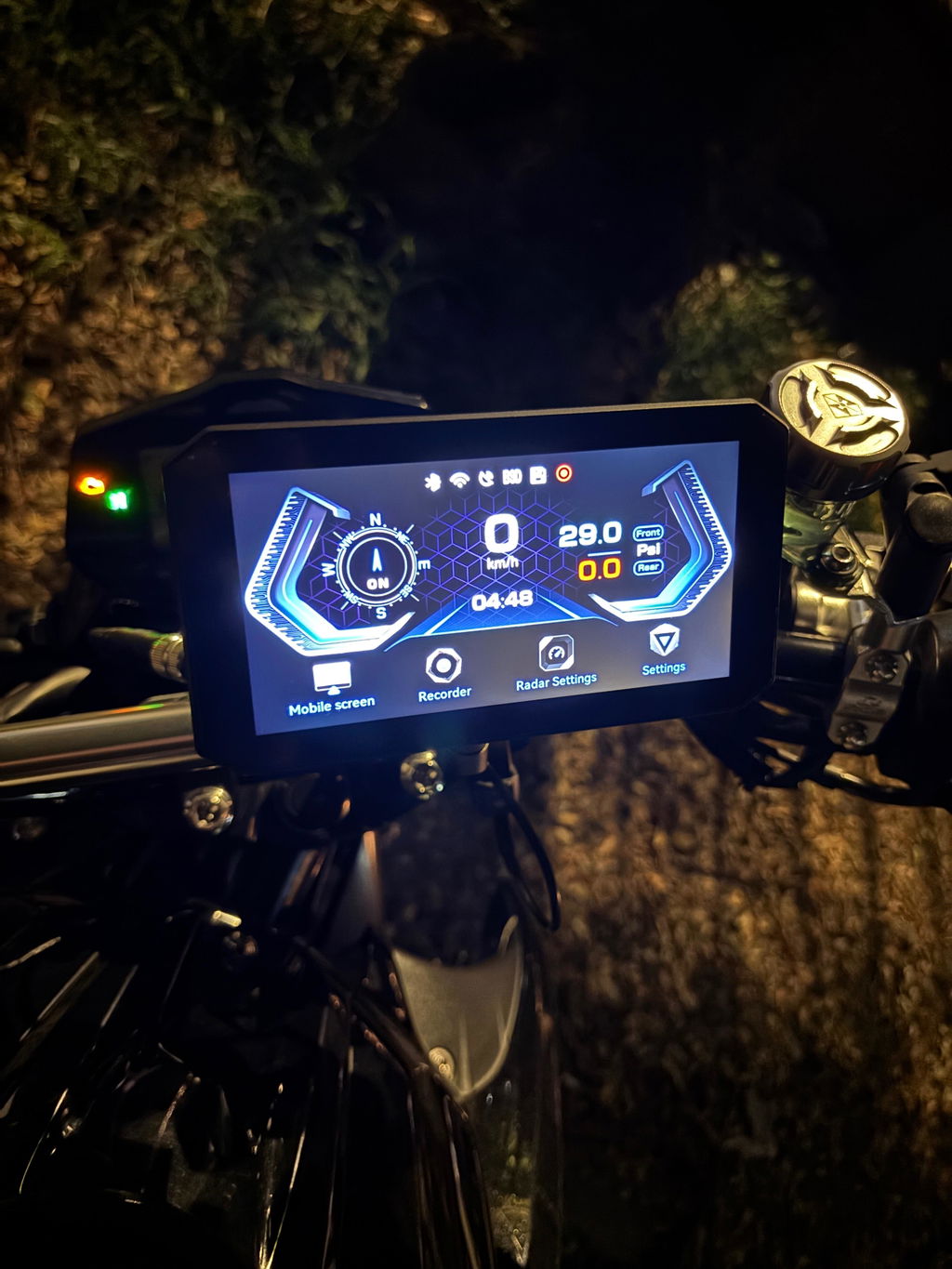

Purchased an Aoocci BX and fitted this initially to a Superduke R 1290 EVO
Worked fantastic. but couldnt live with the bike.

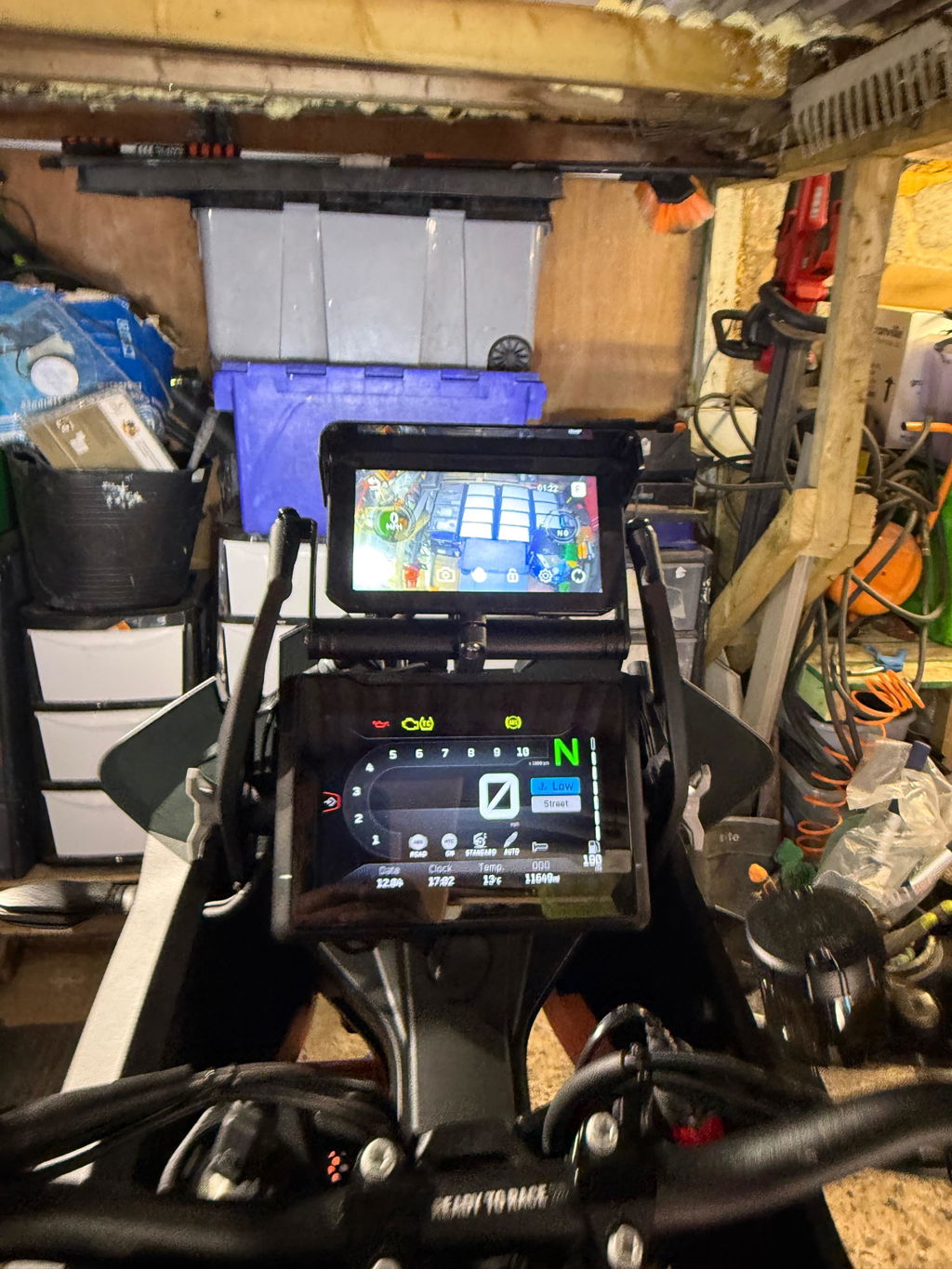

anyway lons story short nor fitted to Superadventure 1290 S , much more comfort, especially on a long trip to Western Scotland, where the Aoocci BX came into its own.
Satnav via waze on screen and through the Sena S50 Worked perfectly.
Blind spot Detection constantly aletring me so switched of sound and just watched he screen, my only gripe is when using an APP like Waze it doesent switch to rear camera view it just alerts you, so missing a trick there.
Dash cam footage perfect some really clear images,
Disconnected TPM as bike already has them

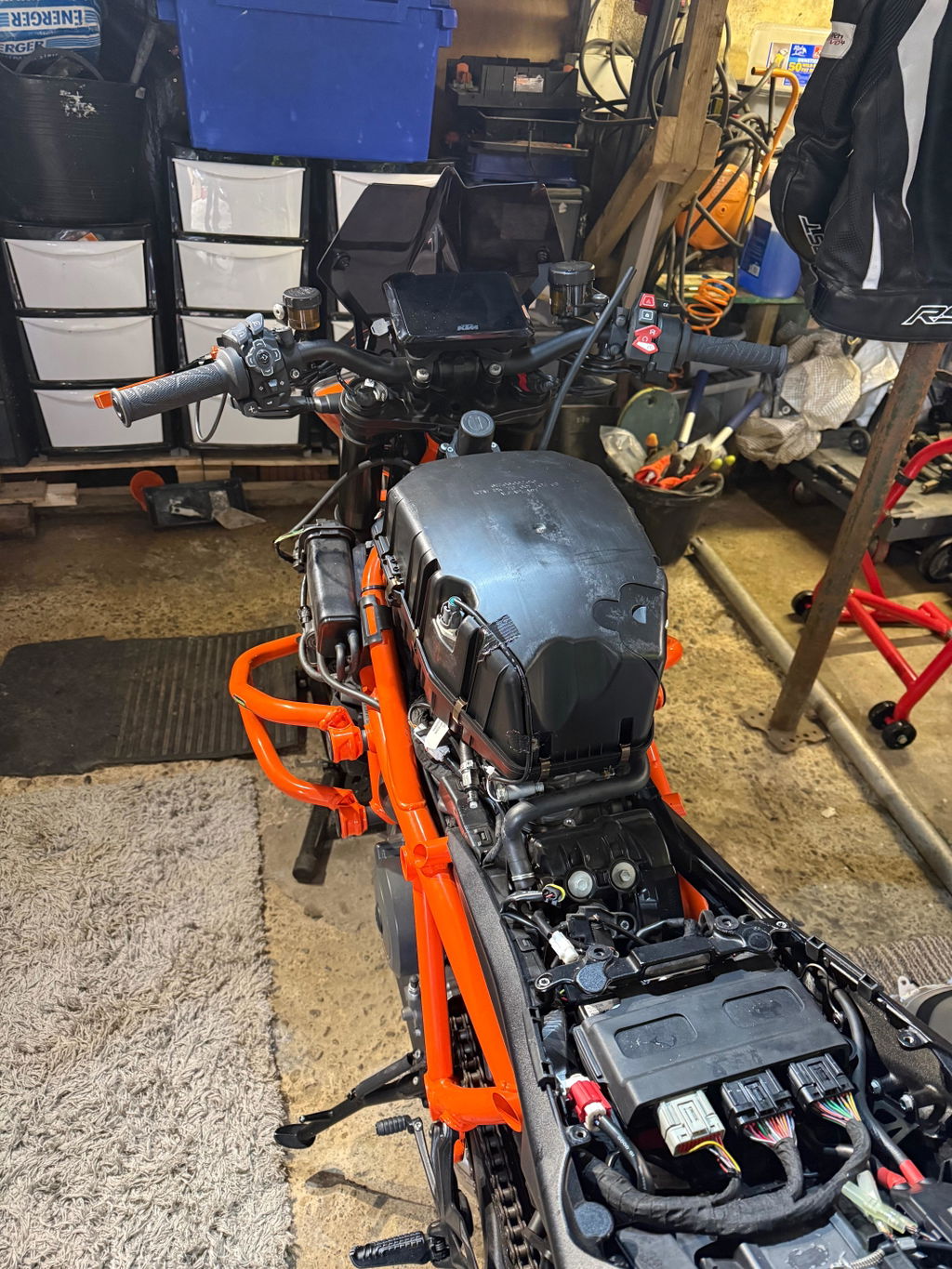

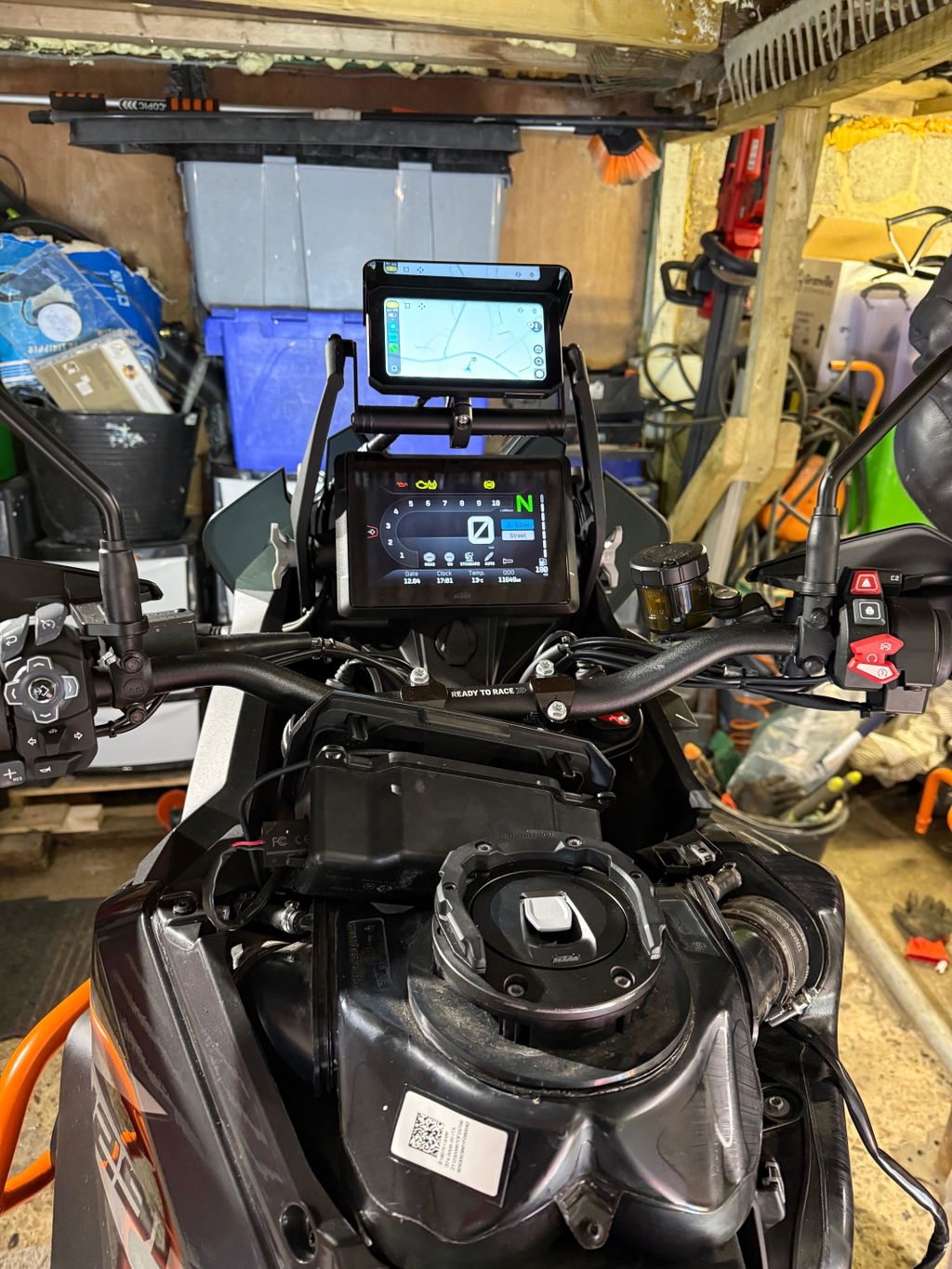

Photos attached of stripdown and build if anyones interested
Thank you so much for taking the time to share such a detailed and thoughtful review of your Aoocci BX experience! ️
We're delighted to hear that the BX worked fantastically on your Superduke R 1290 EVO, and even more so now that it's found a perfect home on your Super Adventure 1290 S. It sounds like it really came into its own during your long trip to Western Scotland — what a fantastic adventure that must have been!
It's great to know that the Waze navigation through the screen and your Sena S50 worked seamlessly, and that the dash cam captured such clear footage. Your honest feedback on the Blind Spot Detection is genuinely valuable — particularly the point about the screen not automatically switching to the rear camera view when a navigation app like Waze is active. We'll be sure to pass this on to our product team for consideration in future updates, as it's a great suggestion that would no doubt improve the experience for many riders.
Thank you also for offering to share photos of the strip-down and build — we love seeing how our riders integrate the BX into their setups, and we're sure others in the community would find them really inspiring too!
We truly appreciate your support and detailed feedback. Wishing you many more safe and enjoyable rides ahead — and plenty more scenic adventures! ️
Best regards,
AOOCCI Team

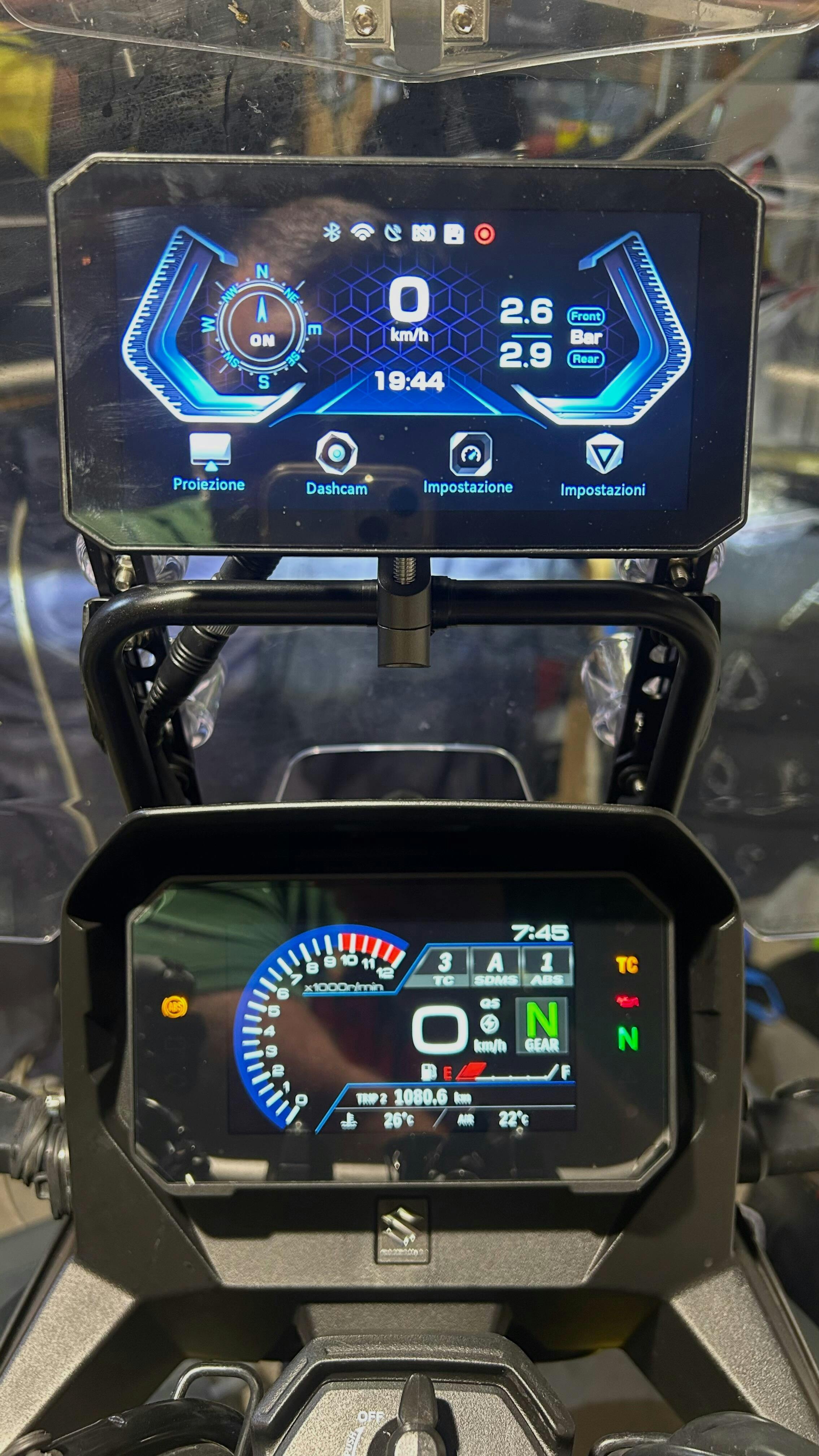

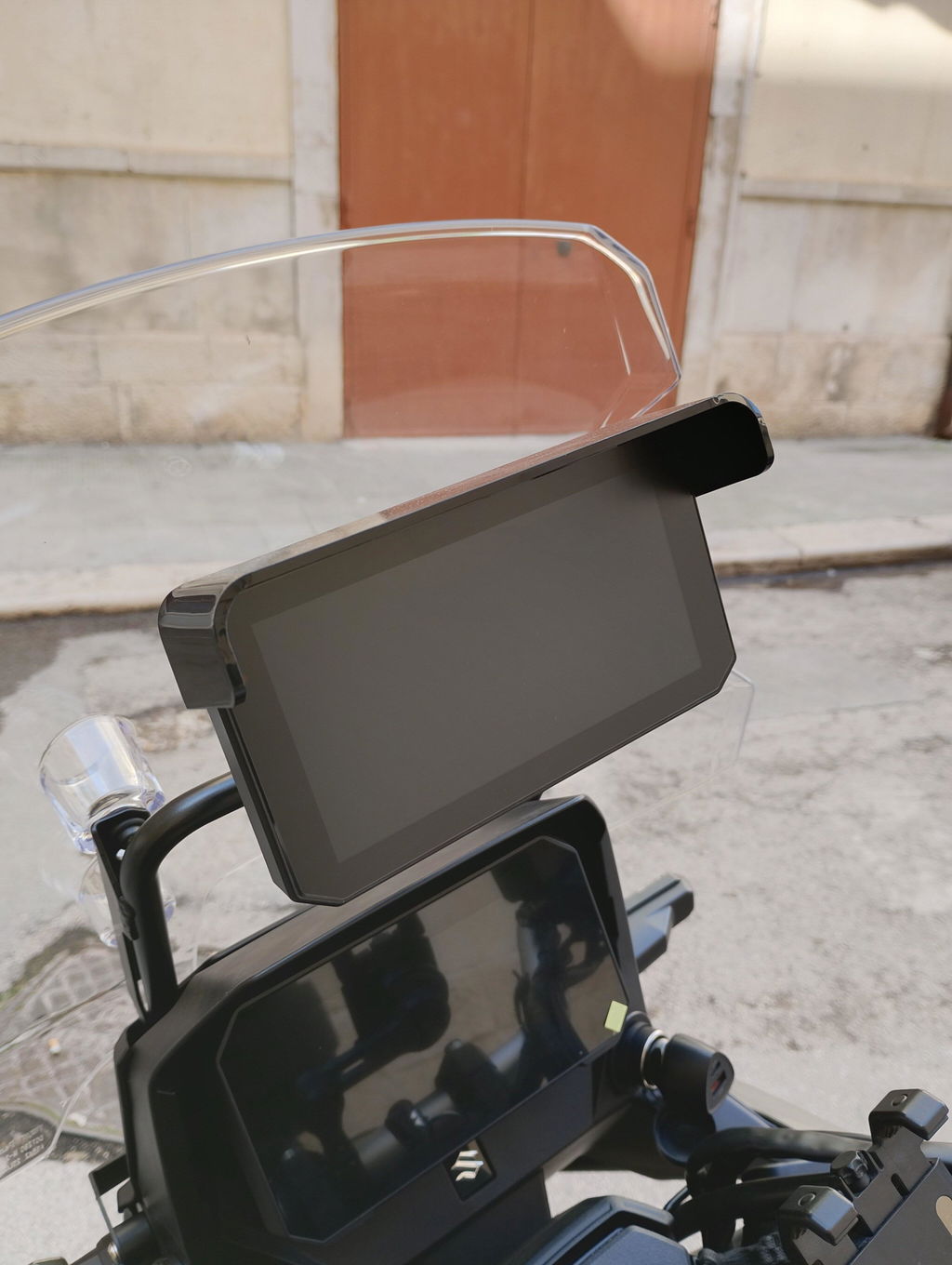

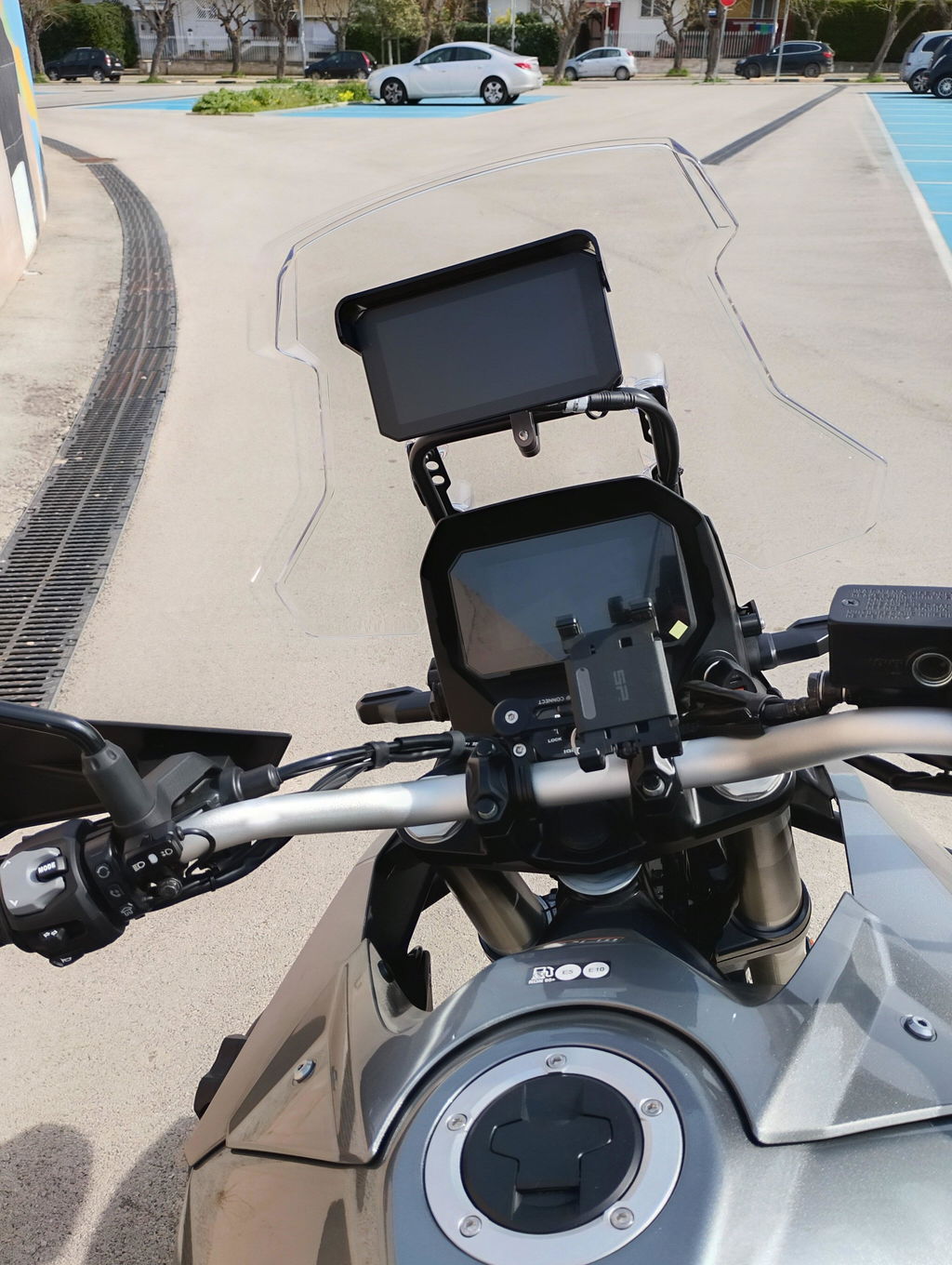

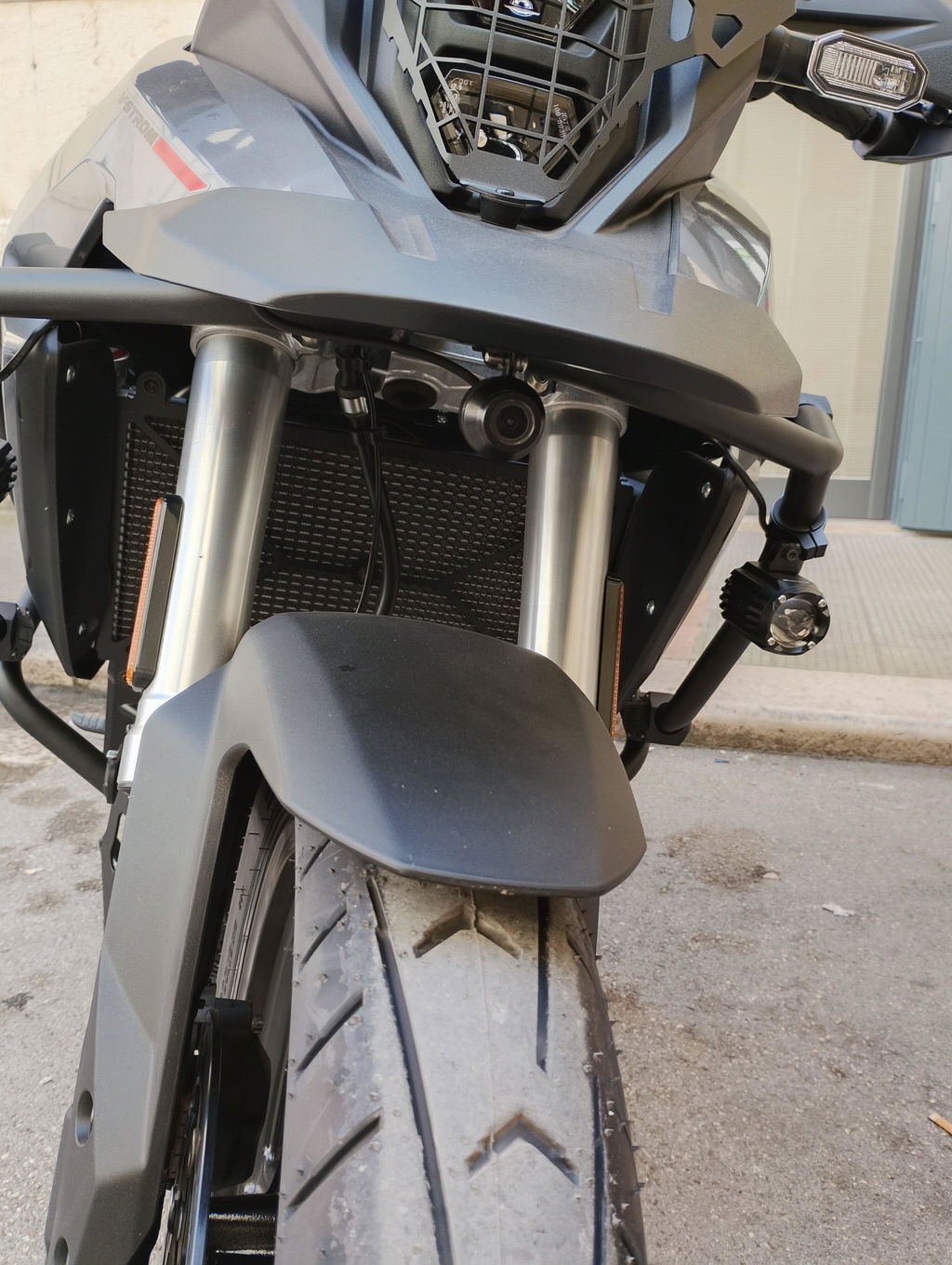

Fantastico, molto intuitivo, super consigliato di facile installazione ancora devo capire bene la funzione GPS, visibilità 6/10 di giorno mentre 10/10 di sera.
Di entrerei volentieri ambasciatore Aoocci in Italia 😅, ditemi solo cosa fare per diventarlo.
Thank you so much for your great review! We’re delighted you find the product easy to use and install. We’ll also keep improving the GPS function and screen visibility for you. Hope you enjoy using it!

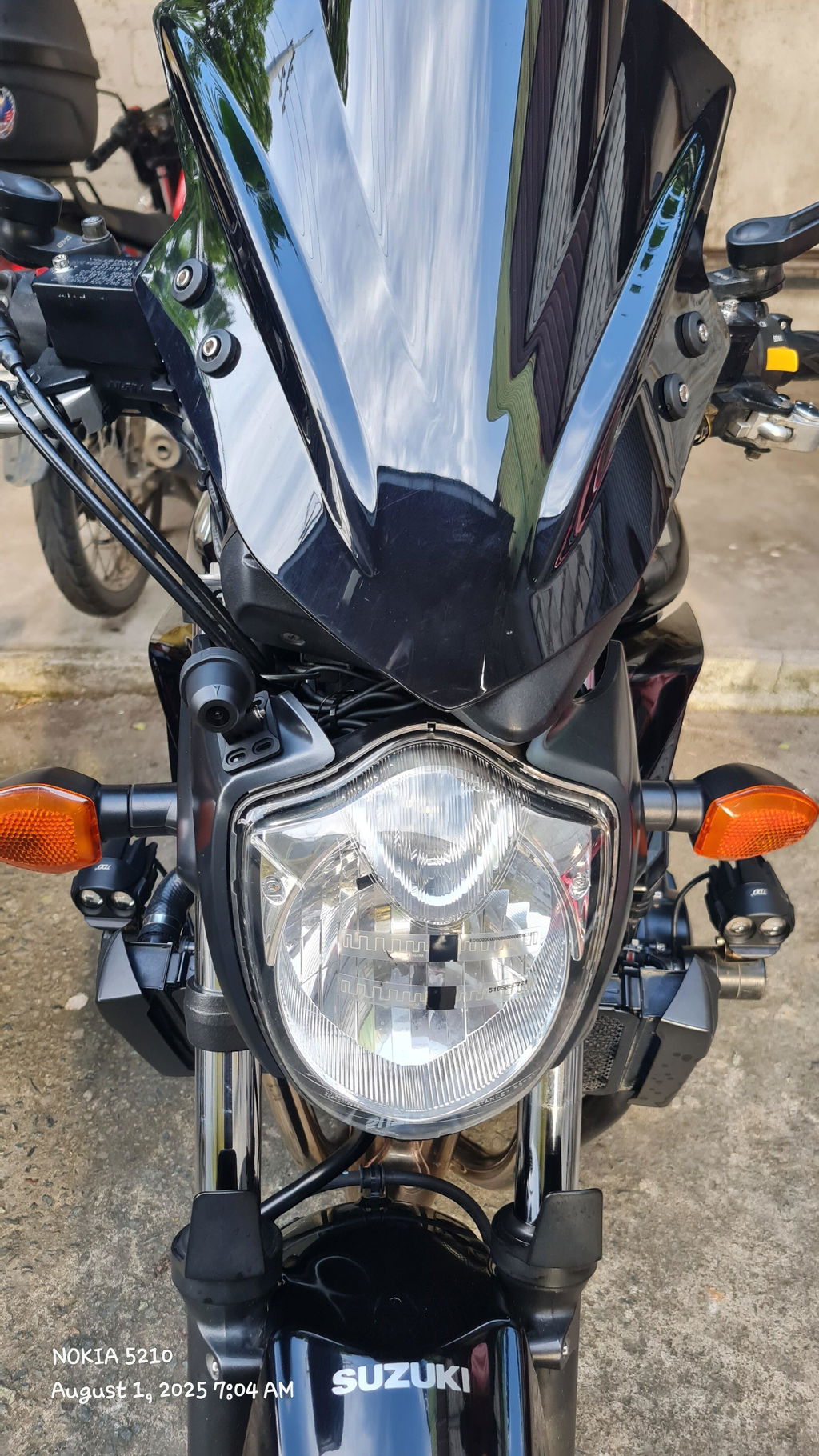

BX what an amazing piece of essential addon to your bike rear front camera high quality radar detect and a reliable unit, there easy to install and you get really good support, you pay for what you get THIS ISN'T LOW END RUBISH Brilliant device
Thank you so much for your wonderful review!
We’re thrilled to hear you love the BX system—high quality, easy installation, and reliable radar detection are exactly what we aim for.
It means a lot that you trust our products and support.
Enjoy your ride, and feel free to reach out anytime if you need help! 😊
Best Regards,
AOOCCI team
The Aoocci BX arrived promptly, though Customs clearance took a day or two.
The unit is very well packaged and comes with nearly everything you need to install it on most motorcycles. The screen is clear and bright enough for most conditions. The road names on the maps are easily readable which is a huge improvement over my large screen mobile phone. Once setup (see below), it connects seamlessly to Android Auto (I haven't got an Apple phone so can't comment on that). But, by making a "one size fits all" unit, there are a number of issues to be addressed:
1. Upgrades:
1.1 After an upgrade/update the system forgets all your settings and peripherals (tyre pressure monitors and radar), these need to be manually reentered. A system to store these setting would be beneficial.
1.2 Upgrades are fairly regular which is excellent but, having to reenter your settings each time is irritating.
1.3 The system needs to reconnected to your phone after each upgrade. This doesn't always work first time or, if it does, it takes quite a long time (up to a minute or longer) before the connection is properly established. This, of course, could be a problem with Android Auto. If it is, more information in the manual would be useful.
1.4 After an upgrade, sometimes you will receive the errors: "Android Auto has encountered an unexpected error" and "Waze has encountered an unexpected error". More information would be helpful like an error code which could be referenced in the FAQ on the website. The only way I have found to fix this is to completely disconnect the unit from the power for at least 1 minute. Cycling the ignition doesn't seem to work.
1.5 After an upgrade, Waze shows a black screen. You still receive the navigation instructions in your helmet or the unit's speaker. Just no map. Again, to fix this completely disconnect the unit from the power for at least 1 minute.
2. Tyre pressure monitor:
2.1 The units that fit on the valve stems are rather large, though very light. Unfortunately, if you have angled valve stems they catch on the brake calipers so can't be used until the valve stems are changed.
2.2 Changing the minimum and maximum thresholds in PSI necessitates pressing the plus or minus sign a large number on times. In my case over 80 to get the correct thresholds for my motorcycle. It is easier working in "Bar", but I work in "PSI".
2.3 The batteries had nearly died on the units. New ones had to be sourced to make the monitors work. A system to disconnect the batteries in transit until they are fitted to the valves would be beneficial (plastic film or don't fit them?).
3. Installation:
3.1 The cables are the wrong length for nearly every bike. This is due to the "one size fits all" nature of the unit. It would be better to provide cables of about 0.5 metre in length and have extension cables available in the box to extend those that need extending. The only exception could be the power cable for the Radar unit which, for my bike, was the perfect length.
3.2 The "Pigtail" cable from the unit itself could benefit from being slightly longer (double the length?)
3.3 The breakout cable that connects to the "Pigtail" cable could do with being longer (double the length?)
3.4 The knurled connectors can work themselves loose over time, even when they are firmly pushed together and fully tightened. Possibly a clip system would be better and, possibly, smaller? I used heat shrink over them to a) stop them coming loose and b) stop the metal scratching the paintwork.
3.5 The "Power brick" on the power cable is in the centre of the cable. It should be nearer one end (the battery end would probably be best) to make installation easier. This cable had to be extended by about 0.5 metre to reach the power supply under the seat in order to place the power brick in a sensible position. This meant there was a lot of excess cable to be hidden on the other end.
3.6 Two or three covers for any unused connectors on the breakout cable would be useful. There is already one on the pigtail end which is very useful. Having said that, I am using all the peripherals.
I would have given the unit only three stars but the recent software upgrades have made it much better. There are, as previously mentioned, still some gremlins to be worked out.
Would I buy the Aoocci BX again? Yes.
Hi there,
Thank you so much for taking the time to share such a **detailed, honest, and constructive review** of the Aoocci BX. We really appreciate you highlighting both the strengths and the areas we can improve — this kind of feedback is exactly how we make our products better.
We’re glad to hear the system arrived promptly, the screen is clear and readable, the packaging is good, and that Android Auto connects smoothly once set up.
We’ve noted **every single one of your points** and passed them directly to our engineering and product teams:
- Settings / peripherals not saving after firmware updates
- Android Auto / Waze errors after upgrades
- TPMS sensor size, adjustment, and battery shipping design
- Cable lengths, connector security, power brick position, and unused port covers
These are all serious points we will address in future **software updates and hardware improvements**.
We’re really pleased you still said **yes, you would buy the BX again** — that means a lot to us. We’ll keep working hard to iron out the remaining issues and deliver the reliable, rider-friendly system you deserve.
Thank you again for your support and for helping us improve.
Ride safe,
The Aoocci Team
Dashcam functions are okay. Video quality as advertised.
Connectivity on Bluetooth on different devices was an issue but resolved.
The compass needs improvement as the arrow does not move and no option to change it.
Recommending AOOCCI team to fix this on the next firmware update.
Also backlight on the buttons can be an improvement feature
Thank you for your honest feedback—we appreciate you sharing both the positives (like the dashcam functions and advertised video quality) and the areas that need improvement!
We’re glad to hear the Bluetooth connectivity issue was resolved. Regarding the compass: we completely understand your frustration with the non-moving arrow and lack of adjustment options. Great news—we’ve already released a new firmware update to fix this compass issue! Please contact our customer support email at support@aoocci.com to confirm which firmware version your unit is currently running, and we will send you the latest version to resolve the problem.
We also value your input about adding backlight to the buttons—this is a great idea for enhancing usability, especially in low-light conditions. We’ll share this with our product team to consider for future updates or iterations.
Thank you again for taking the time to help us improve. If you have any other questions or need support during the firmware update process, please don’t hesitate to reach out.
Aoocci Team
🔍 Après 2 semaines de tets je suis pleinement satisfait.
Test complet du GPS Moto Aoocci BX (2025)
Dans cette vidéo, je teste en profondeur l’Aoocci BX, un écran multifonction pour moto :
✅ GPS hors ligne (même sans réseau)
✅ Android Auto & Apple CarPlay
✅ Dashcams avant + arrière intégrées
✅ Alerte angle mort (BSD)
✅ TPMS (pression pneus en direct)
✅ Idéal pour les longs road trips moto
📌 Est-ce une vraie alternative aux Garmin Zumo XT2 ou aux GPS classiques ? Je vous donne mon avis complet après plusieurs tests sur route.
Cher Avisseur,
Un grand merci pour avoir partagé votre test complet et positif de l’Aoocci BX (2025) après deux semaines d’usage ! Nous sommes extrêmement ravis d’apprendre que vous êtes pleinement satisfait de ce GPS multifonction pour moto.
Votre détail des fonctionnalités clés — comme le GPS hors ligne, la compatibilité Android Auto & Apple CarPlay, les dashcams intégrées, l’alerte angle mort (BSD) et le TPMS — est très précieux pour les autres motards qui cherchent un équipement fiable pour leurs road trips. Et nous sommes impatients de découvrir votre avis complet sur sa capacité à rivaliser avec des références comme la Garmin Zumo XT2 dans votre vidéo.
Si vous rencontrez d’autres points à souligner ou des questions lors de futures utilisations, n’hésitez pas à nous contacter. Encore merci pour votre soutien et votre retour détaillé — ils nous aident à continuer d’améliorer nos produits !
Cordialement,
AOOCCI Team
Le bx fonctionne très bien. Peut-être la prise de contact pourrait être plus simple à brancher et d débrancher . La boussole ne fonctionne pas ?😘
Un grand merci pour votre retour positif sur l’Aoocci BX — nous sommes ravis de savoir qu’il fonctionne bien pour vous !
Concernant la prise de contact : votre suggestion de la rendre plus facile à brancher et débrancher est excellente. Nous allons transmettre cette remarque à notre équipe de conception, car améliorer la praticité des accessoires est une priorité pour nous.
Pour la boussole qui ne fonctionne pas : la fonction de boussole a été effectivement implémentée dans la version V0.0.5 du firmware. Pour pouvoir utiliser cette fonctionnalité, il vous faudra mettre à jour le firmware de votre appareil. Vous pouvez suivre les étapes de mise à jour en consultant le lien ci - dessous : https://aoocci.com/blogs/help-center/motorcycle-dash-cam
Si vous rencontrez des difficultés lors de la mise à jour ou si vous avez d’autres questions, n’hésitez pas à nous contacter. Nous sommes là pour vous aider.
Encore merci pour votre feedback et votre patience !
Cordialement,
AOOCCI Team

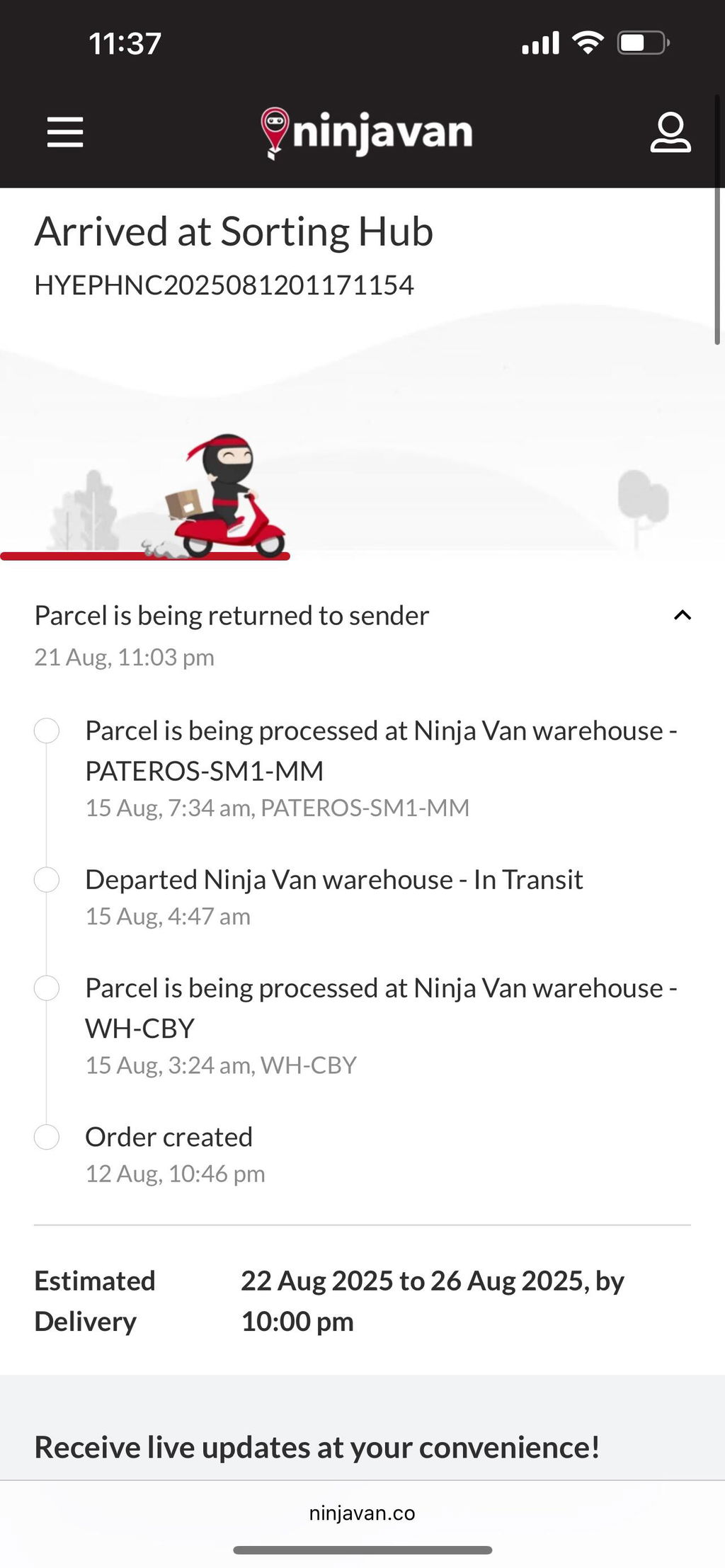

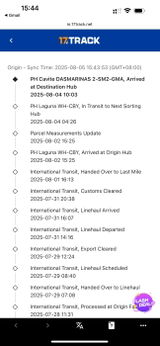

Item not yet received unable to do a review
Sorry for keep you waiting.

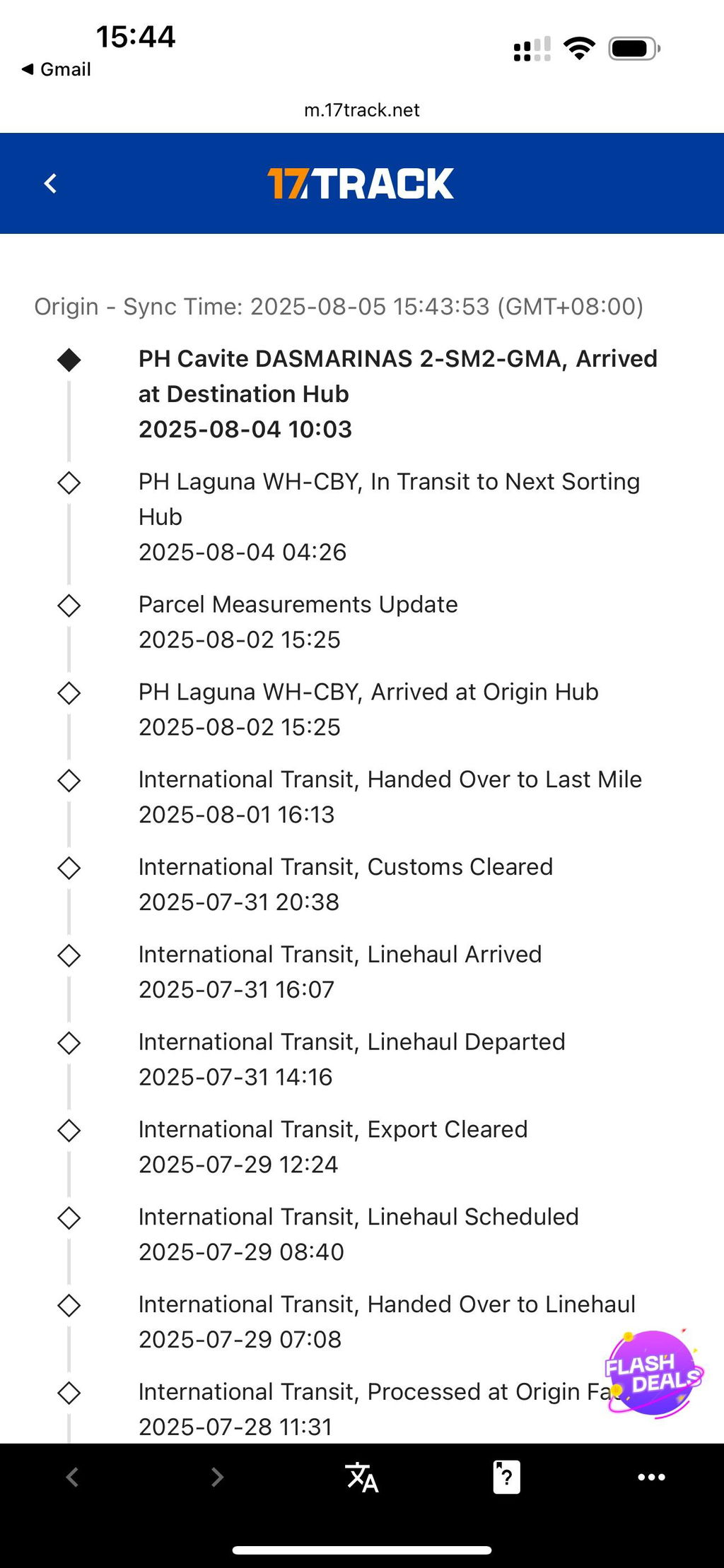

Regarding your order, we have just tracked the logistics progress for you and found that the order was successfully delivered on August 27. We believe you have received the BX by now.
https://t.17track.net/en#nums=YT2522400704054581
We look forward to your feedback on its use in the future.

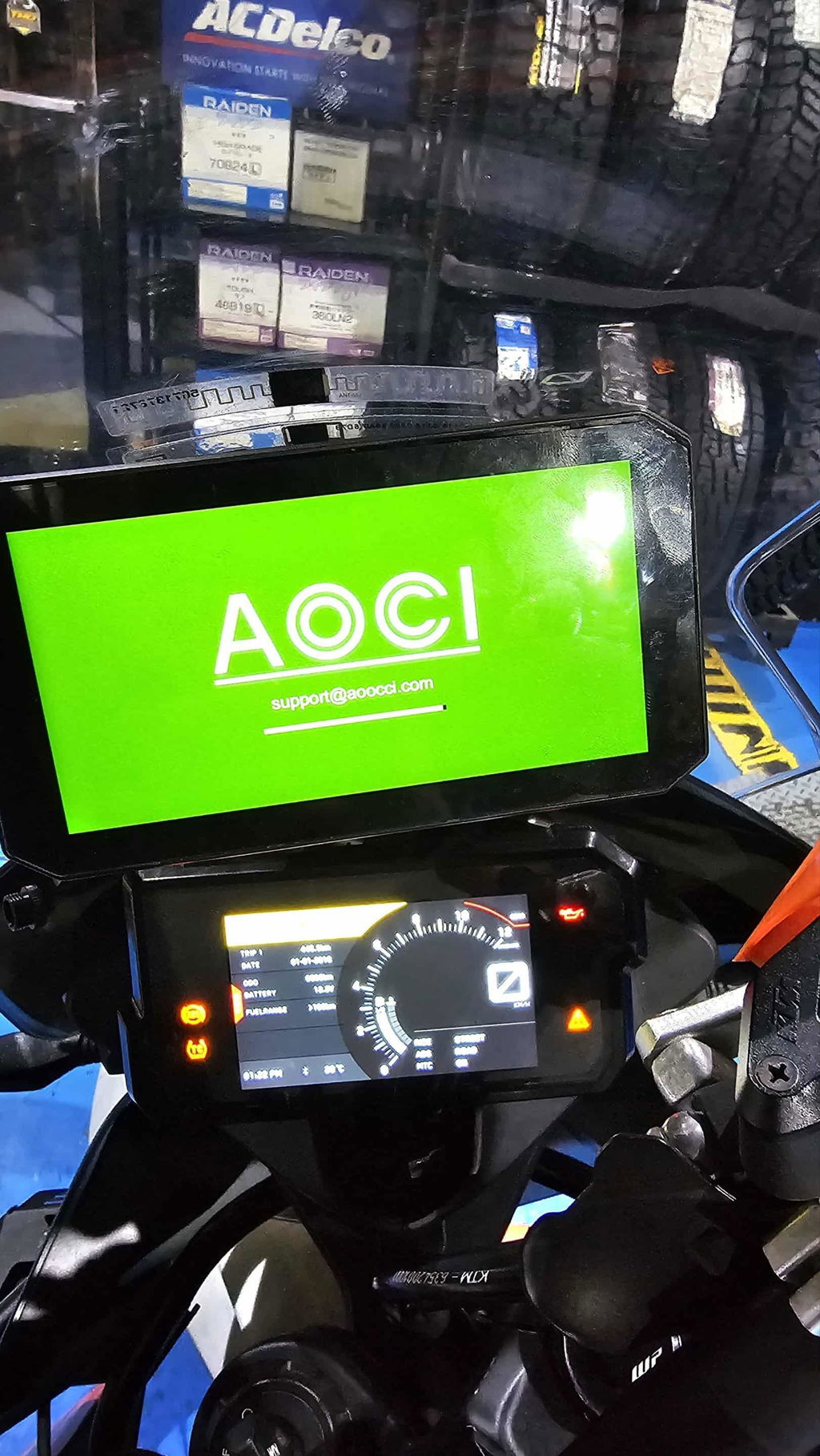

honest review. it's good, clear, easy to use. my only concern is that when you remove it, the cable might get damaged if it rains and there's no cover for the cable, it's exposed. there should be a free cover to keep the unit safe. that was also the problem with my first dash cam. water damage, it needs protection. And replacement of tire pressure when its damage or stolen. How we replaced?
Thank you so much for your honest feedback and recognition of our product’s clarity and ease of use—we truly appreciate you taking the time to share your thoughts!
Regarding the cable protection issue you mentioned, we would like to clarify that our current products are already equipped with a waterproof cap to address this problem. If your device is missing this accessory, please feel free to contact our customer support team. We apologize again for the inconvenience caused by water damage to your previous dash cam.
Regarding tire pressure monitor replacement: If your tire pressure sensor is damaged or stolen, please contact our customer support team with your order details and a description of the issue. We’ll guide you through the replacement process, which may include verifying the product’s warranty status and arranging for a replacement unit (subject to our warranty policy).
Thank you again for your feedback—it helps us make better products for our customers. Please feel free to reach out if you have any other questions or needs!
Best regards,
AOOCCI Team

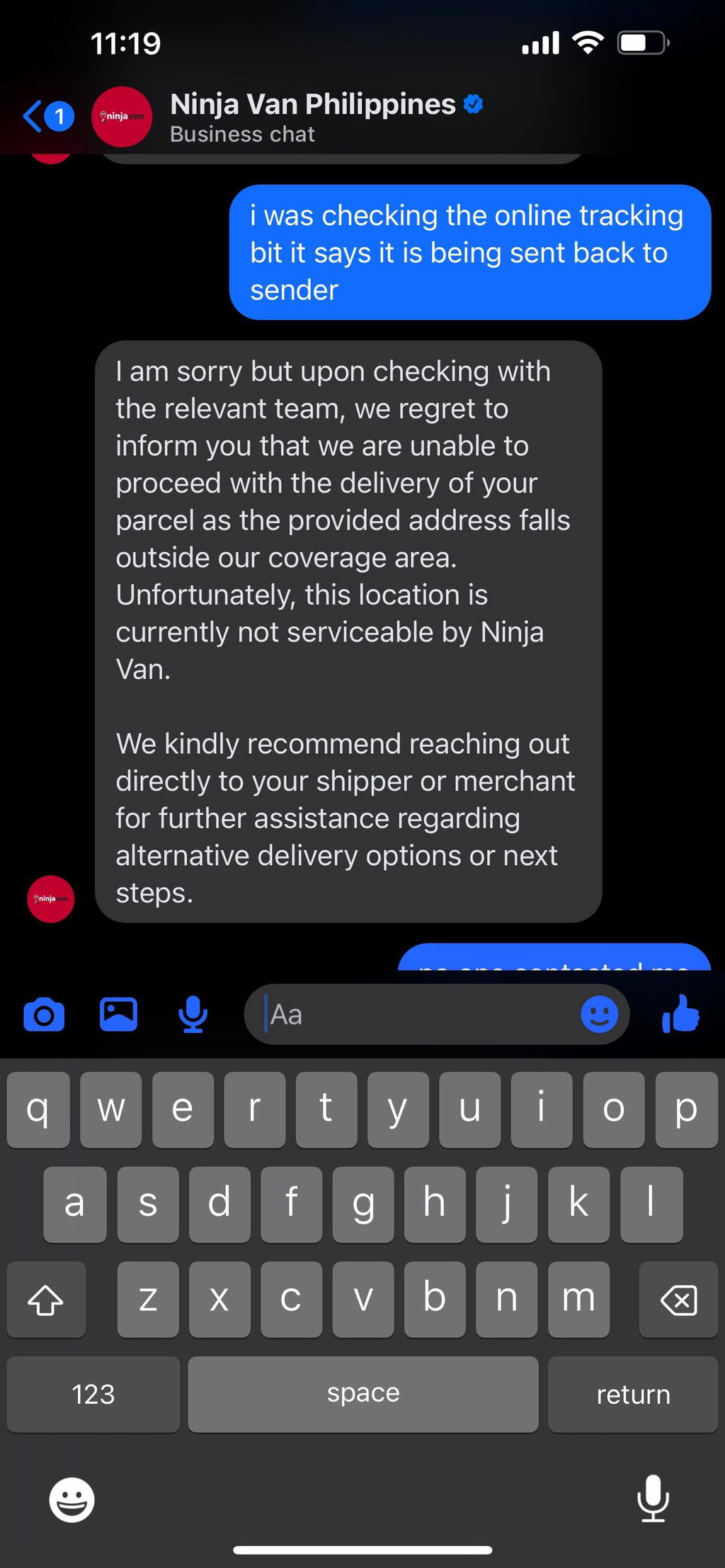

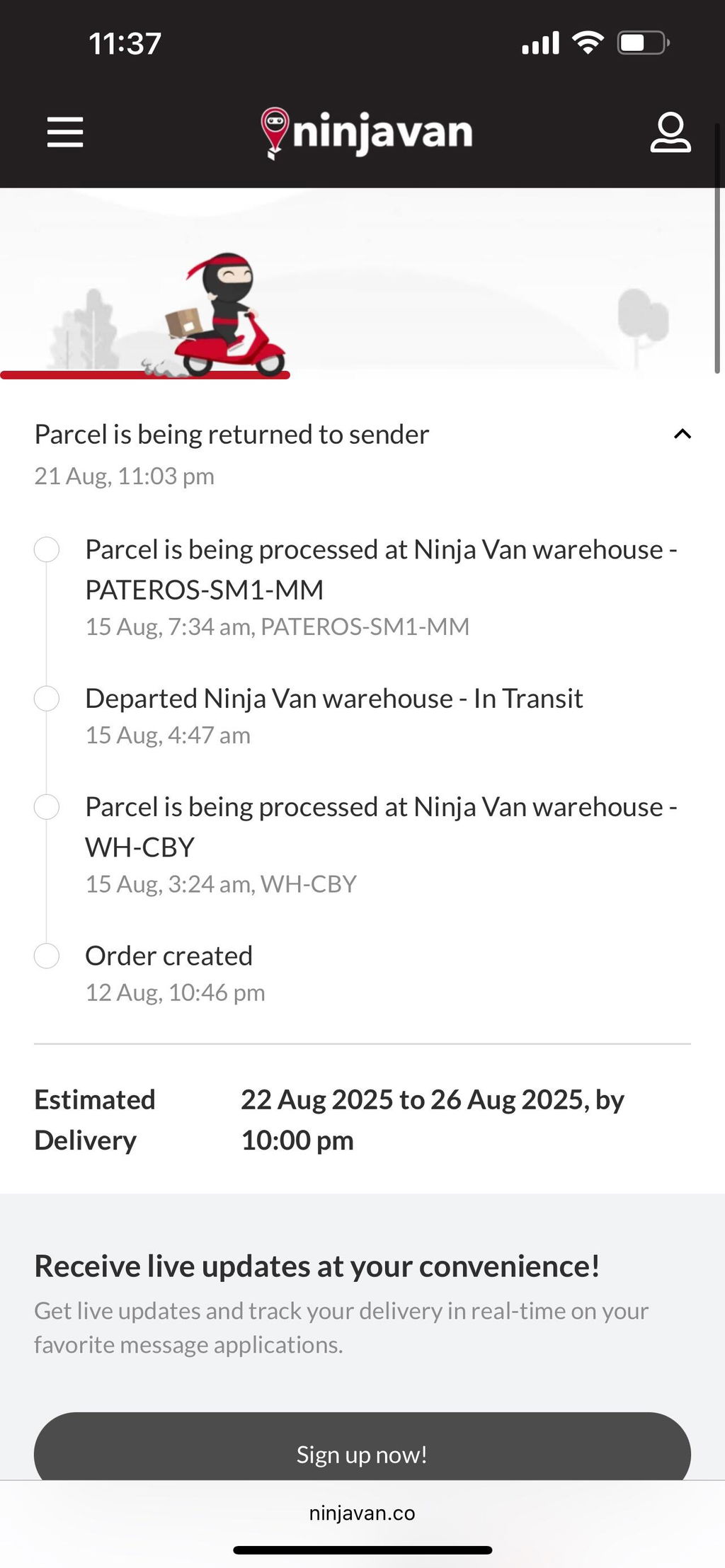

I haven’t received my item yet, so I’m unable to provide a proper review at this time.
Thank you for your feedback. We sincerely apologize for the delay in your receiving the item, which has prevented you from submitting a comprehensive review at this time.
We would like to inform you that your package is currently undergoing normal transit procedures. Based on the latest logistics updates, it is anticipated to be successfully delivered within 3-5 days.
Once you have received the item and had the opportunity to use it, we would be most grateful if you could spare a moment to share your valuable insights with us. Please do not hesitate to contact our customer service team if you have any further questions or require additional assistance during this period. We remain committed to providing you with support whenever needed.
very good item. easy to use. and fully funtional
Thank you very much for your positive feedback! We are delighted to hear that you find the item easy to use and fully functional. Your satisfaction is our greatest motivation to maintain product quality and improve our services. If you have any questions or need assistance during future use, please feel free to contact us at any time. We sincerely appreciate your support and hope you continue to enjoy using the product!
Brilliant bit of kit , had to buy adaptor for the fork mount but this wasn't an issue , didn't realise I needed android auto on my bike until I tried it ,cameras work great , nice clear screen , easy to set up and install just take your time and think about where all parts are going to go first .
Thank you so much for your detailed and positive review! We’re thrilled to hear that you’re satisfied with the device’s performance, from the clear camera quality and easy setup to the practical addition of Android Auto to your bike.
We appreciate you mentioning the adapter for the fork mount—your feedback helps other users prepare, and we’ll keep this in mind for future product notes. Taking time to plan the installation is such a great tip, and we’re glad the process went smoothly for you.
If you ever have questions about using the device or need further assistance down the line, please don’t hesitate to reach out. Thank you again for your support, and we hope you enjoy many great rides with your new setup!
